Getting started with secrets¶

App secrets are a critical part of production services; they are defined as anything that should be protected, and include things like TLS certificates, API tokens, dynamically-generated database credentials, and more.

If an app connects to another app it likely uses a secret to verify its identity (mTLS). If an app needs to perform an action on another app or service, it likely needs to authenticate and be authorized to perform that action (CRUD).

A simple example¶

The following Wordpress example¹ is commonly referenced as a pattern for microservices:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

services:

  wordpress:
    image: wordpress
    restart: always
    ports:
      - 8080:80
    environment:
      WORDPRESS_DB_HOST: db
      WORDPRESS_DB_USER: exampleuser
      WORDPRESS_DB_PASSWORD: examplepass
      WORDPRESS_DB_NAME: exampledb
    volumes:
      - wordpress:/var/www/html

  db:
    image: mysql:8.0
    restart: always
    environment:
      MYSQL_DATABASE: exampledb
      MYSQL_USER: exampleuser
      MYSQL_PASSWORD: examplepass
      MYSQL_RANDOM_ROOT_PASSWORD: '1'
    volumes:
      - db:/var/lib/mysql

volumes:
  wordpress:
  db:

This example demonstrates how services can use secrets, but it is not offered as a "best-practice" by any stretch!

Store secrets in Vault¶

If your application uses any kind of sensitive data, store and retrieve this data from our own hosted version of Hashicorp Vault². Vault is a secrets management platform, and one of its most useful features is simple key-value pair secret storage.

Vault has a web UI and an API, as well as a convenience command line utility (CLI).

brew tap hashicorp/tap
brew install hashicorp/tap/vault

wget -O - https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(grep -oP '(?<=UBUNTU_CODENAME=).*' /etc/os-release || lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install vault

Login¶

1. Login

   Navigate to the Vault³ web service and click on the blue "Sign in with Azure" button. Authenticate with your BCIT credentials.

   Login with the CLI

   If you are using the CLI, you can login with the following command:

   vault login -method=oidc username={yourBcitIdUsername}


Add a secret¶

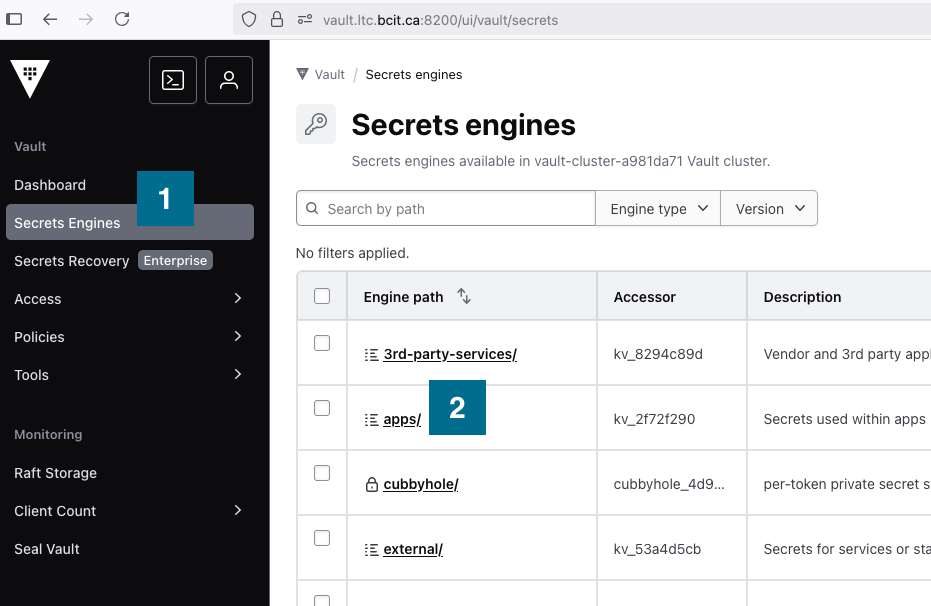

1. Select the Secrets Engines menu item and then select apps/ .



2. Secrets should be unique for different environments and stored using the following pattern:

   {mount}/{APP_NAME}/{ENVIRONMENT}/{SECRET_NAME}


   If, for example, you have the following...

   • secret name: api-key
   • secret value: API_KEY=5JR1K5vyXA38F0
   • app name: qcon-web
   • environment: stable environment

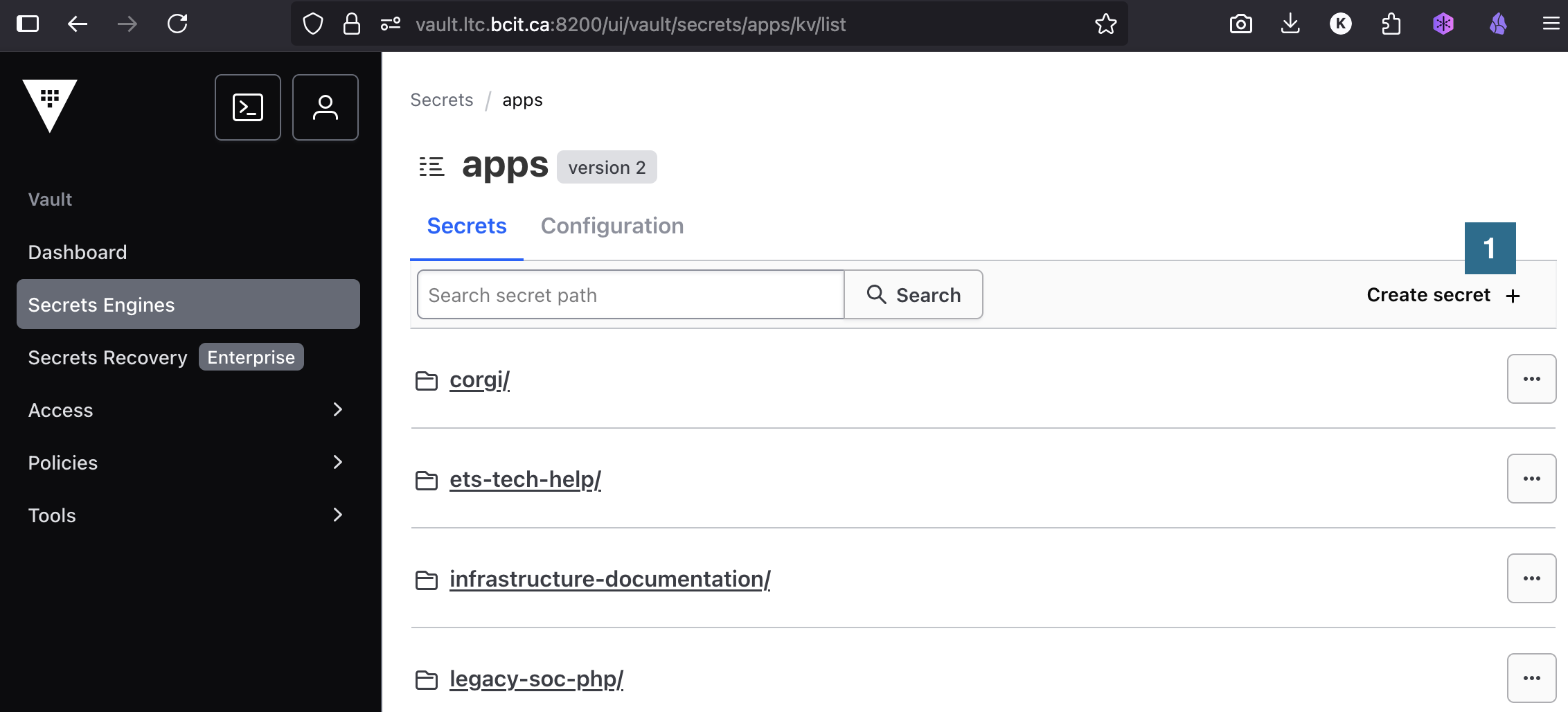

   ...you can create a new secret by clicking Create Secret

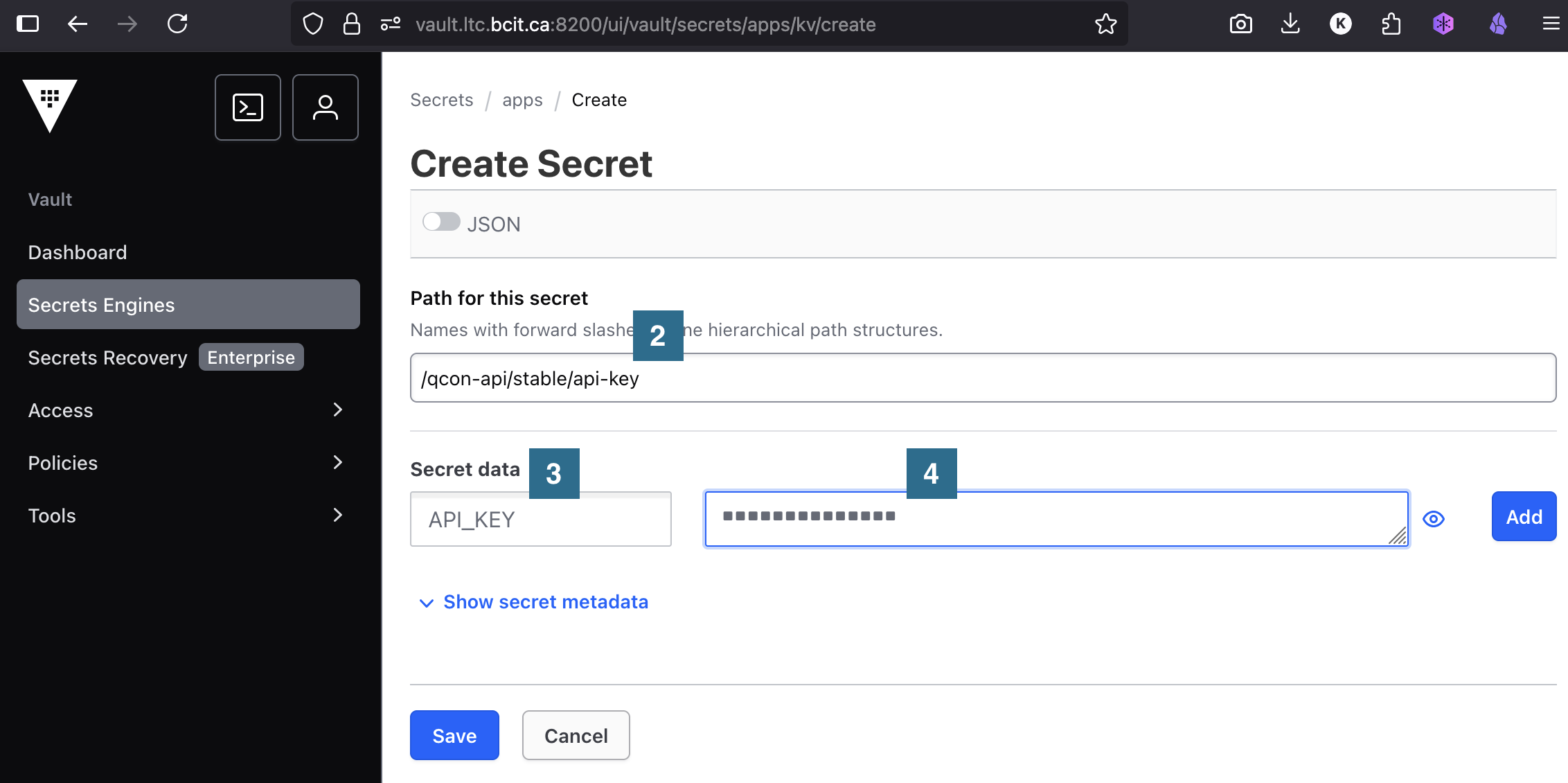

   Adding the Path for this secret , the Secret data key, and the value of the secret :



   Store a secret with the CLI

   store this secret with the following command:

   vault kv put -mount="apps" "qcon-web/stable/api-key" API_KEY=5JR1K5vyXA38F0


See the links in the side menu for additional information about secrets.
